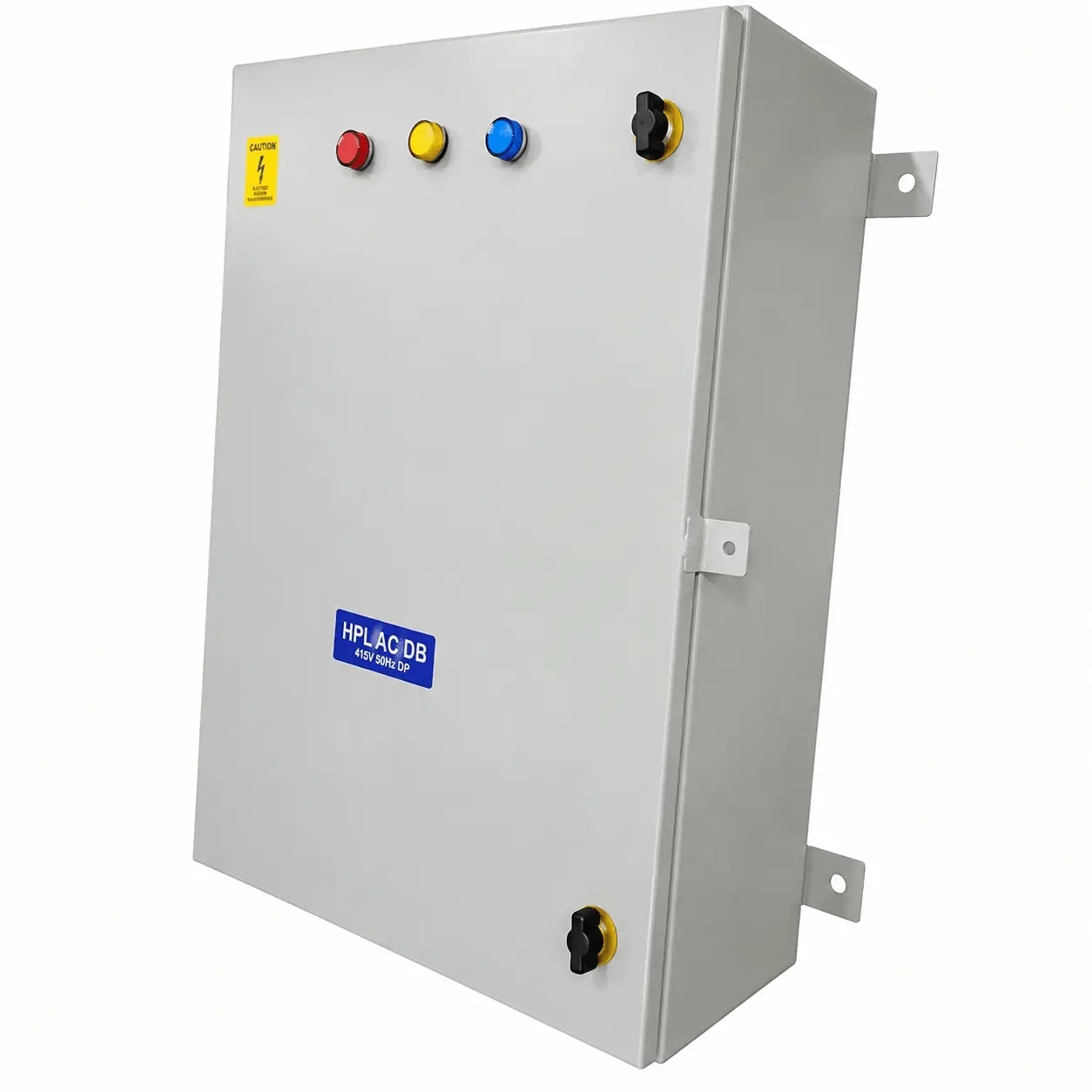

Heavy-duty three-phase AC distribution boards built for large commercial and utility-scale solar installations, from 30kW right up to 300kW. Each unit combines high-capacity overcurrent protection — C-Curve MCBs on smaller ratings, 4-pole MCCBs on larger ones — with Type-2 40kA surge protective devices and a No-Volt Release (NVR) switch that safely disconnects the system on under-voltage and prevents unsafe auto-restart.
Every board is housed in a rugged IP65-rated powder-coated metal enclosure with RYB phase indicators and isolators, and built with L&T and Elmex components. As capacity rises, the breaker rating scales with it — so whatever the size of your plant, the protection is matched to the load.
Supplied in bulk to EPCs, installers, and developers across India, with custom configurations available on request. Message us on WhatsApp with your system size for the right capacity and a bulk quote.
Specifications & Technical Details:
- Configuration: 3-Phase ACDB, powder-coated metal box
- Enclosure: IP65-rated, industrial grade, outdoor-ready
- Overcurrent protection: 4-Pole C-Curve MCB (smaller sizes) / 4-Pole MCCB (larger sizes)
- SPD: Type-2 40kA
- Protection: No-Volt Release (NVR) under-voltage switch
- Components: L&T + Elmex
- Features: RYB phase indicators, isolators, cable glands, warning labelling
- Bulk supply · custom configurations available
Capacity & breaker rating (available options):
| Capacity | Breaker rating |
| 30–35 kW | 80A / 100A MCB |
| 40–45 kW | 100A / 125A MCCB |
| 50–55 kW | 125A / 160A MCCB |
| 60–70 kW | 160A / 200A MCCB |
| 75–80 kW | 200A / 250A MCCB |
| 100 kW | 250A MCCB |
| 120 kW | 320A / 400A MCCB |
| 150 kW | 400A MCCB |
| 180 kW | 630A MCCB |
| 200 kW | 630A / 800A MCCB |
| 250 kW | 800A MCCB |
| 300 kW | 1000A MCCB |
Specify your system capacity when enquiring and we’ll supply the correctly-rated board.
Shipping & Returns: Returns: No returns accepted; item is sold as-is. Shipping: Local pickup is available. If shipping is required, the buyer is responsible for all actual shipping costs.
FAQs:
- What capacities are available? From 30kW to 300kW — see the capacity table above. Tell us your system size and we’ll supply the right one.
- When does it use an MCB vs an MCCB? Smaller ratings (up to ~35kW) use C-Curve MCBs; from 40kW upward the higher currents require 4-pole MCCBs.
- What is the NVR switch? A No-Volt Release that safely disconnects the system on under-voltage and prevents unsafe automatic restart.
- What surge protection is included? Type-2 40kA SPDs on every unit.
- Is it suitable for outdoor installation? Yes — IP65-rated powder-coated metal enclosure, built for Indian conditions.
- Can I order in bulk or get a custom configuration? Yes — we supply in bulk pan-India and offer custom configurations. Message us on WhatsApp.
